Description

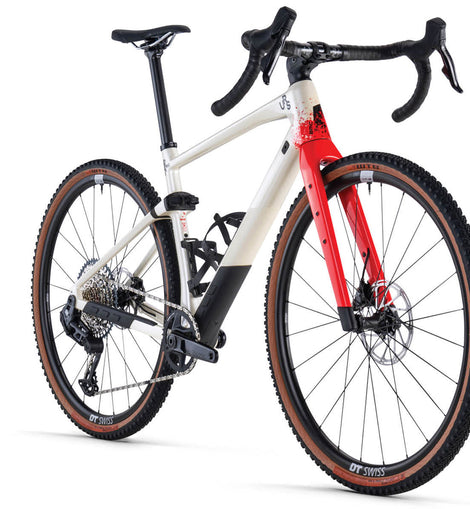

unrestricted gravel bike BMC UNRESTRICTED 01 FOUR GRAVEL BIKE - SRAM GX EAGLE RIVAL AXS MIXThe latest evolution of gravel adventure bike, URS 01 FOUR is outfitted with the SRAM Rival AXS groupset, paired with the SRAM GX Eagle transmission and finished off with DT Swiss G 1800 SPLINE wheels booted with 44mm WTB Raddler tires. While also featuring our MTT Suspension stem and downtube storage, making it perfectly suited for any adventure. Frameset Frame: URS 01 Premium Carbon with MTT Tuned Compliance Concept Gravel Gravel+ Geometry ICS
Frameset
Frame:
URS 01 Premium Carbon with MTT | Tuned Compliance Concept Gravel | Gravel+ Geometry | ICS Technology Stalth Cable Routing | Integrated Storage | Fender and Rack Mounts | 12 x 142mm Thru-Axle | UDH Droput
Fork:
URS 01 Premium Carbon with Tuned Compliance Concept Gravel | ICS Technology Integrated BRake & Hub Dynamo Routing | Cargo Mounts | Fender and Rack Mounts | Flat Mount Disc | 12 x 100mm Thru-Axle
Suspension
Rear Suspension:
Micro Travel Technology Stays
Cockpit
Stem:
ICS MTT x Redshift Suspension Stem | Integrated Cockpit System Technology
Handlebar:
Easton EA70 AX
Seat
Seatpost:
URS 01 Premium Carbon D-Shaped Seatpost | 0mm Offset | D-Fender Compatible
Saddle:
WTB Silverado Cromoly | Medium
Drivetrain
Crankset:
SRAM Rival 1 DUB WIDE
Chainrings:
38T
Cassette:
SRAM GX Eagle Transmission XS-1275
Cassette Size:
10-52T
Chain:
SRAM GX Eagle Transmission Flattop
Rear Derailleur:
SRAM GX Eagle Transmission
Shifters:
SRAM Rival eTap AXS
Gears:
1 x 12
Bottom Bracket:
PF86 Bottom Bracket
Brakes
Brake Levers / Calipers:
SRAM Rival eTap AXS
Rotors:
SRAM Centerline
Rotor Size (F/R):
180 / 160mm
Wheels
Rims:
DT Swiss G1800 SPLINE | 25mm
Hubs (F/R):
DT Swiss 370 Spline Disc
Tires:
WTB Raddler | 44mm
Tubeless Information:
Tubeless Ready Rims | Tubetype Tires
Accessories
Additional Information
Tire Clearance:
47mm
Weight without Pedals:
9.8 Kg
ASTM Classification:
Level 2
System Weight Limit:
120kg
| Size | XS | S | M | L | XL |
|---|---|---|---|---|---|
| Rider Height | <167 | 165-170 | 168-178 | 176-188 | >188 |
| Reach | 390 | 400 | 410 | 420 | 430 |
| Stack | 560 | 560 | 580 | 610 | 640 |
| Bar Drop | 120 | 120 | 120 | 120 | 120 |
| Bar Reach | 80 | 80 | 80 | 80 | 80 |
| Bar Width | 420 | 420 | 420 | 440 | 440 |
| BB Drop | 76 | 76 | 76 | 76 | 76 |
| Crank Length | 170 | 170 | 172.5 | 172.5 | 175 |
| Fork Length | 405 | 405 | 415 | 415 | 415 |
| Fork Rake | 50 | 50 | 45 | 45 | 45 |
| Front Center | 633 | 643 | 651 | 672 | 693 |
| Head Tube | 133 | 133 | 140 | 172 | 204 |
| Head Tube Angle | 69 | 69 | 69.5 | 69.5 | 69.5 |
| Rear Center | 430 | 430 | 430 | 430 | 430 |
| Seat Angle | 74.5 | 74.5 | 74.5 | 74.5 | 74.5 |
| Seat Tube | 430 | 445 | 475 | 505 | 540 |
| Seatpost Length | 310 | 360 | 360 | 360 | 360 |
| Seatpost Offset | 0 | ||||
| Standover Height | 727 | 735 | 758 | 778 | 795 |
| Stem Length | 72 | 72 | 72 | 80 | 90 |
| Top Tube | 545 | 555 | 571 | 589 | 607 |
| Trail | 84 | 84 | 86 | 86 | 86 |
| Wheelbase | 1052 | 1062 | 1070 | 1091 | 1112 |
