Description

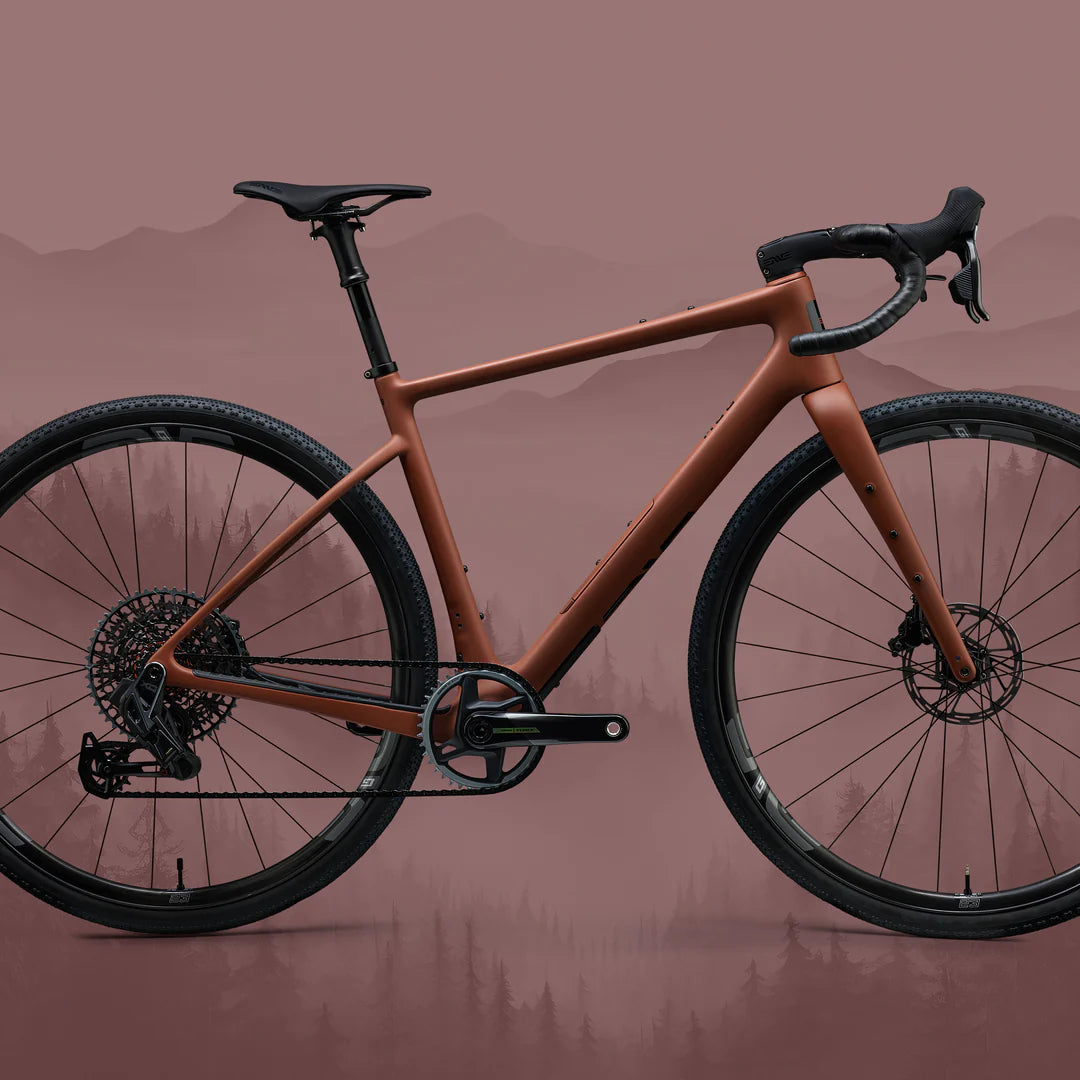

mog gravel bike Enve Mog / AG 25 / Shimano GRX Di2 – (ME•CHAN•IC)/bicycle pro shopOne fantastic race chassis, one amazing build. You pick the size stem, seatpost and bar. Shimano GRX Di2 825 components accompany the Mog Chassis. Enve Seatpost (Your Choice Offset), Enve Aero Stem (Your Choice Length) , Enve Bar (Your Choice Size, Model), Enve Bar Tape, Enve Aero Computer Mount, Enve Selle Italia SLR Ti Saddle (Your Choice), Enve AG 25 Wheel Set, Enve Tires (Your Choice). Shimano 12 speed, 2x or 1x. You pick the gearing. We will
One fantastic race chassis, one amazing build. You pick the size stem, seatpost and bar.
Shimano GRX Di2 825 components accompany the Mog Chassis.
Enve Seatpost (Your Choice Offset), Enve Aero Stem (Your Choice Length) , Enve Bar (Your Choice Size, Model), Enve Bar Tape, Enve Aero Computer Mount, Enve / Selle Italia SLR Ti Saddle (Your Choice), Enve AG 25 Wheel Set, Enve Tires (Your Choice).
Shimano 12 speed, 2x or 1x. You pick the gearing. We will contact you after purchase to confirm size of seatpost, bar, stem, crank length and gearing preference. We will build the bike to your fit specifications. Please provide XY coordinates of the handle bar and seat.
Drivetrain has been waxed.
Shipping will be corrected when the bike is boxed. Sorry, no refund or return on complete bicycles. All of our Fray bikes are custom order and will take 7-10 days to ship. We will contact you to confirm size of parts.
RACE, PERFORMANCE, OR ADVENTURE. HOW WILL YOU MOG?
The MOG chassis is ready to be built a la carte to suit your riding style. Make the MOG the exact bike you want through component choices that will best take you where you want to go.
CONFIDENCE OVER ANY TERRAIN
From the Flint Hills of Kansas to the Foothills of Ogden, the MOG was designed to go fast, in confidence, over any terrain you deem appropriate to MOG. With six frame sizes and three unique fork rakes, the MOG has been designed to ensure that optimal handling is achieved regardless of frame size.
INTEGRATION WITHOUT ALIENATION
The IN-Route System routes wires and hoses through the bar, stem, and headset, where they’re secured using ENVE’s anti-rattle finishing kit – allowing them to remain silent, out of sight, and out of the wind.
RIDE TUNED
Through three fork rakes and six sizes we’ve created a sizing span to accommodate the smallest and largest of riders while ensuring that, regardless of size, the MOG will deliver the same level of responsive, confidence-inspiring handling.
| Frame Material | ENVE M.O.D Carbon, 12x142 Thru-Axle, Flat-Mount Disc, Threaded T47 BB, Internal Routing, Fender Compatible |
| Fork Material | ENVE M.O.D Carbon, 12x100 Thru-Axle, Flat-Mount Disc, Internal Routing, Fender Compatible |
| Target Application | Gravel Racing/Riding/Exploration/Adventure |
| Sizes (cm) | 49, 52, 54, 56, 58, 60 |
| Fork Rake | 57, 55, 53 |
| Fork Axle to Crown | 395mm |
| Frame Size/Fork Rake | 49cm/57, 52cm/57, 54cm/55, 56cm/55, 58cm/53, 60cm/53 |
| Frame Weight | 950g +/- 2% (Size 56, Painted, No Hardware) |
| Headset | ENVE Integrated IS52/IS52 Internal Drop-In |
| Headset Bearing | 1.5" IS52 Upper and Lower |
| Seat Post Diameter | 27.2 |
| BB Type | T47 Inboard Bearing |
| Brake Mount | Flat Mount |
| Brake Rotor Compatibility | F: 160/180, R: 140/160 (Adapters Required) |
| Front Axle | 12x100 (Total Length: 122, TP:1.5, TL:15) |
| Rear Axle | 12x142 (Total Length: 168, TP:1.0, TL:14) |
| Minimum Tire Size | 700 x 36c |
| Optimal Tire Size | 700 x 40c-44c |
| Maximum Listed Tire Clearance | 700 x 50c |
| Frame Routing | ENVE IN-Route Internal |
| Water Bottle Capacity | 3 |
| Top Tube Mounts | Yes |
| Fender Mount Compatible | Yes |
| Wheel Size |
700C (650b Not Recommended)
|
MOG GEOMETRY CHART
|
|
49 |
|
|
|
|
|
|
Reach |
367 |
|
|
|
|
|
|
Stack |
520 |
|
|
|
|
|
|
Top Tube |
511 |
|
|
88099UG8683 |
|
|
|
Fork Rake |
57 |
％082幼4788G2 |
838G855w8az8 |
|
|
06X8m8g19n20 |
|
Seat Tube Length (c to top) |
439 |
|
|
|
|
|
|
Max Saddle Rail Height (w/ 400mm post) |
764 |
|
|
|
|
|
|
Max Saddle Height (w/ ENVE SLR Saddle) |
800 |
|
|
861 |
|
|
|
Seat Tube Angle |
74.5 |
|
|
73.5 |
|
72.75 |
|
Head Tube Angle |
71 |
71 |
71.25 |
71.25 |
|
71.5 |
|
Head Tube Length |
92 |
117 |
140 |
163 |
|
209 |
|
BB Drop |
77 |
77 |
75 |
75 |
|
73 |
|
Chainstay Length |
420 |
420 |
420 |
420 |
|
420 |
|
Wheel Base |
993 |
1012 |
1027 |
1042 |
840跳85688怎7例7幼顺6A22a27M双双刚6aa64 |
1071 |
|
Front Center |
580 |
599 |
613 |
629 |
|
657 |
|
Rear Center |
412.9 |
412.9 |
413.2 |
413.2 |
a |
413.6 |
|
BB Height (50mm tire) |
289 |
289 |
291 |
291 |
|
293 |
|
BB Height (44mm tire) |
279 |
279 |
281 |
281 |
|
283 |
|
BB Height (40mm tire) |
277 |
277 |
279 |
279 |
|
281 |
|
BB Height (35mm tirel |
273 |
273 |
275 |
275 |
|
277 |
|
Standover (50mm tire) |
714 |
734 |
756 |
776 |
|
819 |
|
Standover (44mm tire) |
705 |
725 |
747 |
767 |
|
809 |
|
Standover (40mm tire) |
702 |
722 |
744 |
764 |
|
807 |
|
Standover (35mm tire) |
698 |
718 |
740 |
760 |
|
803 |
|
Trail (50mm tire) |
65.5 |
65.6 |
66 |
66 |
|
66.4 |
|
Trail (44mm tire) |
62.3 |
62.3 |
62.8 |
62.8 |
|
63.2 |
|
|
|
|||||
