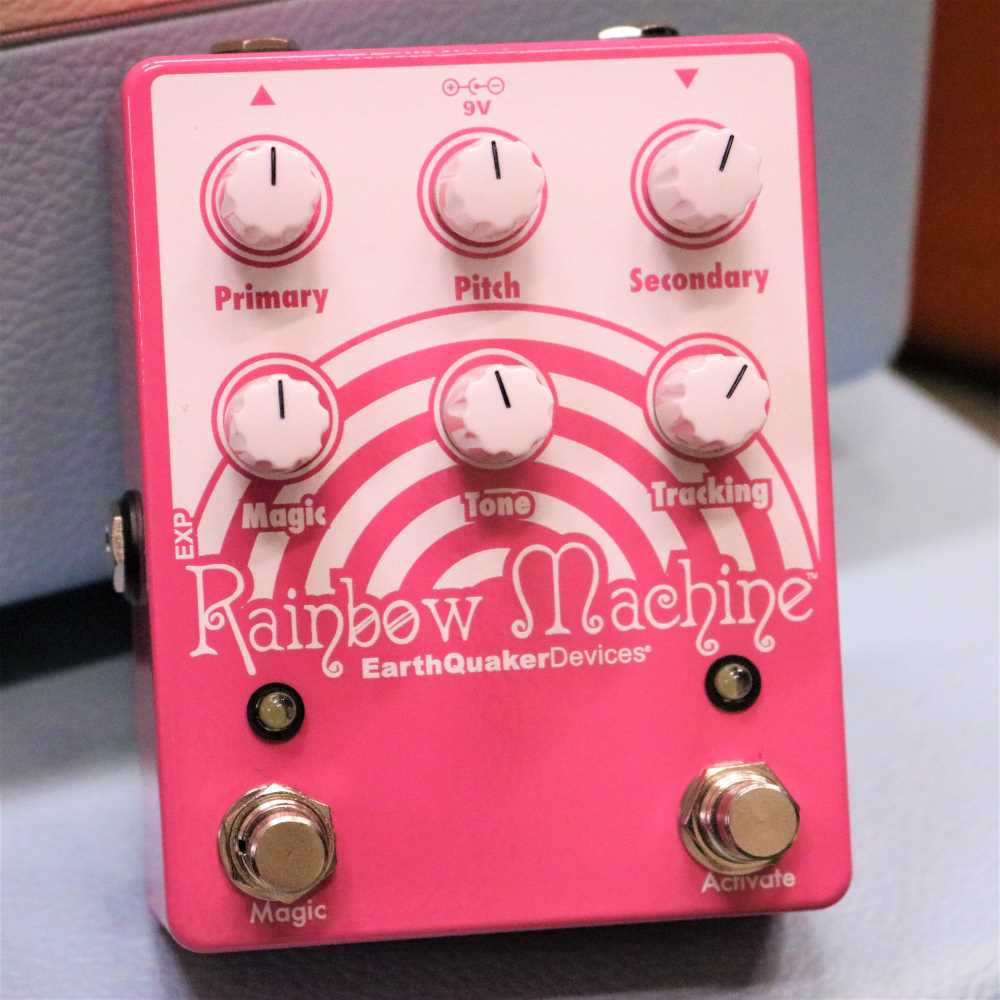

rainbow machine pedal EarthQuaker Devices Rainbow Machine V2 – Pitch Pedal

rainbow machine pedal EarthQuaker Devices Rainbow Machine V2 – Pitch PedalEarthQuaker Devices Rainbow Machine Polyphonic Pitch Mesmerizer Guitar Effects Pedal Welcome to the Rainbow Machine, in all its synthetic glory! This one is for experimenters, adventurists and noisemakers. Totally not for purists and or tone hounds, there are no natural sounds that will come from this box. It takes modern DSP and uses it as a tool of future past to create real time pitch shifting using digital oscillators. The sound is much different

EarthQuaker Devices - Rainbow Machine Polyphonic Pitch Mesmerizer Guitar Effects Pedal

Welcome to the Rainbow Machine, in all its synthetic glory! This one is for experimenters, adventurists and noisemakers. Totally not for purists and/or tone hounds, there are no natural sounds that will come from this box. It takes modern DSP and uses it as a tool of future past to create real time pitch shifting using digital oscillators.

The sound is much different than most modern day pitch shifting devices. It was imagineered to be wild and out of control and slightly imperfect while still tracking up and down the guitar neck without glitching out. A cold digital beast made to pretend it has feelings. It will do basic polyphonic harmonies from a 4th down through a 3rd up and every atonal pitch in between. You may add in an accompanying octave of the harmony by bringing up the Secondary function control. You can take it way beyond and open up your third eye by bringing in the Magic. The Magic is the heart of the Rainbow Machine. In conjunction with the Tracking control, the Magic creates wild pitch take offs and descents, chaos chorusing, shrieks, pixie trails and wealth of other general mayhem inducing noises. The pitch can be controlled by an external expression pedal for extra fun! The Rainbow Machine can be used on bass, keys, vocals or anything else you can dream up! This device has become a main stay of so many studios and touring musicians that we have lost count!

All digital wet signal with an all analog dry signal, true bypass switching and handmade one at a time by warm blooded human beans in the swamps of Akron, Ohio.

Specs:

Dimensions: 4.65 x 3.65 x 2.25 in. (118 x 93 x 57 mm) with knobs
Current Draw: 68 mA
Input Impedance: 1 MΩ
Output Impedance: <1 kΩ

Expression Jack
This is an expression pedal control jack for the pitch. The Pitch control is defeated when an expression pedal is inserted. We recommend the Moog EP-2 or EP-3 for use with the Rainbow Machine and cannot guarantee that any others will work.

Flexi-Switch® Technology
This device features Flexi-Switch® Technology! This relay-based, true bypass switching style allows you to simultaneously use momentary and latching style switching.

For standard latching operation, tap the footswitch once to activate the effect and then tap again to bypass.


For momentary operation, hold the footswitch down for as long as you’d like to use the effect. Once you release the switch the effect will be bypassed.


Since the switching is relay based, it requires power to pass signal.

Power
This device takes a standard 9 volt DC power supply with a 2.1mm negative center barrel. We always recommend pedal-specific, transformer-isolated wall-wart power supplies or multiple isolated-output supplies. Pedals will make extra noise if there is ripple or unclean power. Switching-type power supplies, daisy chains and non-pedal specific power supplies do not filter dirty power as well and let through unwanted noise.

DO NOT RUN AT HIGHER VOLTAGES!
